limitations of current XR glasses, whats needed

Current Optical & Hardware Limitations

1. Fixed-Focus Optics & Vergence-Accommodation Conflict (VAC)

• The Physics: Existing displays rely on fixed focal distances (typically 1.3–2.0 meters) via flat screens and static pancake or refractive lenses.
• The Issue: While virtual depth queues force eyes to converge (cross inward or uncross) to look at near or far objects, the crystalline lens inside the eye must maintain a static focus to keep the display pixels sharp. This breaks the neurological coupling between ocular vergence and accommodation.

2. Static Monocular Wavefronts & Missing Micro-Parallax

• The Physics: Closing one eye isolates monocular depth cues (motion parallax, depth blur, and focal shifts). Current micro-OLED or LCD optics output uniform flat wavefronts.
• The Issue: Micro-accommodative fluctuations—tiny continuous focal adjustments made by the ciliary muscle—yield no depth feedback. Monocular focus cues fail to respond dynamically to eye shifts, producing unnatural static depth.

3. Uniform Display Density vs. Retinal Architecture

• The Physics: Photoreceptor density drops rapidly outside the central fovea (~1–2° field of view).
• The Issue: While software-driven foveated rendering reduces GPU load by downscaling peripheral pixel output, the display hardware itself features a uniform spatial pixel density. Current systems cannot reproduce the optical characteristics or resolution distribution of the human eye array across the entire FOV.

4. Active Near-Infrared (NIR) Eye Tracking Exposure

• The Physics: High-frequency IR illuminators (~850 nm) track pupil movement without triggering the eye’s visible light aversion response.
• The Issue: In dark headset enclosures, dilated pupils allow invisible NIR radiation to hit the crystalline lens and retina. While hardware meets general safety limits (such as IEC 62471), continuous multi-hour exposure over extended periods bypasses natural blinking reflexes.

Physiological Symptoms from Prolonged Daily Exposure

[Fixed Optical Distance] ----> Ciliary Muscle Locked -----> Accommodative Spasm ("Pseudo-Myopia")[Vergence/Focus Decoupling] -> Neurological Mismatch -----> Visual Strain, Nausea & Headaches[Reduced Blink Rate] -------> Tear-Film Breakdown ------> Evaporative Dry Eye & Corneal Fatigue

• Accommodative Spasm (“Pseudo-Myopia”): Holding ciliary muscles at a single focus state for hours causes the lens-controlling muscle to lock up temporarily. Upon removing the headset, real-world distance vision remains blurry for extended periods.
• Ocular Strain & Central Fatigue: Continual neurological conflict between vergence and accommodation causes severe eye strain, tension headaches, and altered depth perception.
• Dry Eye & Corneal Micro-Damage: Focused viewing reduces normal blink rates (15–20 blinks/min) by up to 50–70%, degrading the tear film and leading to burning, light sensitivity, and superficial corneal irritation.

What Is Missing in Contemporary Hardware

Current state-of-the-art consumer and enterprise devices (e.g., Apple Vision Pro, Varjo XR-4, Meta Ray-Ban Display) lack key biological optical integration:

• Continuous Varifocal Display Engines: No commercial devices dynamically shift physical focal planes in real time to match ciliary muscle focus for digital rendering.
• Continuous Wavefront Reconstruction: Panels output 2D pixel grids rather than true 3D light fields, omitting depth-of-field blur (bokeh) at the optical level.
• Retinal-Matched Physical Resolution Profiles: Panels cannot vary hardware pixel density across the display plane to mirror the biological structure of the fovea and peripheral retina.

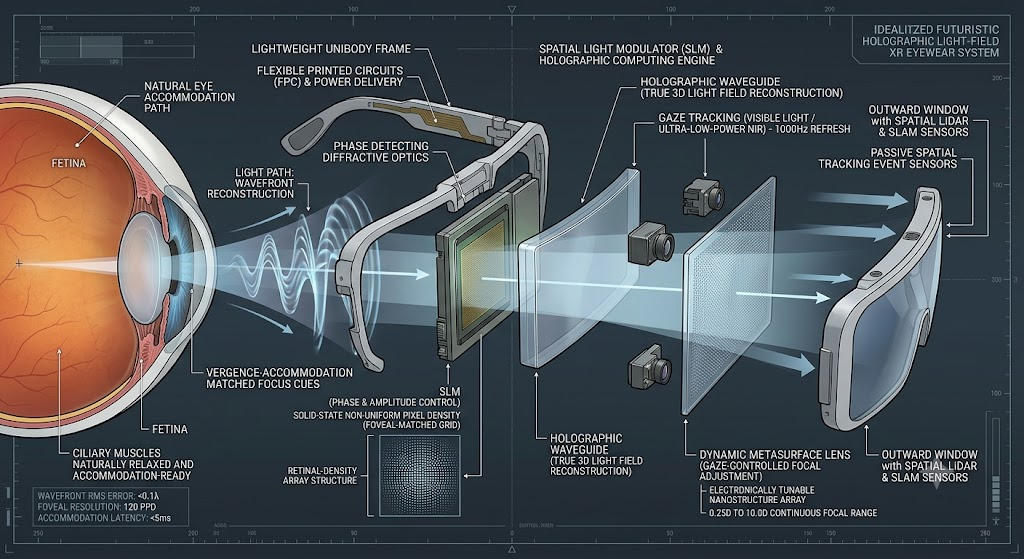

Theoretical Ideal Form Factor: The True Wavefront Display

  [ Idealized Optical Architecture ]

  Spatial Light Modulator (SLM) / Holographic Engine
                         │
                         ▼
        Continuous Light-Field Wavefront
                         │
                         ▼
  Wide-Band Dynamic Metasurface Lens (Focal Adjustment)
                         │
                         ▼
   Human Eye (Natural Accommodation & Depth Blur)

The long-term idealized architecture for XR eyewear replaces fixed 2D screens with Holographic Light-Field Wavefront Generators:

• Holographic Spatial Light Modulators (SLMs): Projects complete phase-controlled light wavefronts rather than flat 2D pixel grids. Light rays enter the pupil with natural curvature, allowing ciliary muscles to focus naturally at any visual depth.
• Dynamic Metasurface Lenses: Replaces thick optical stacks with flat, electronically controlled nanostructure arrays that adjust optical paths instantly based on real-time gaze tracking, eliminating moving mechanical parts.
• Solid-State Non-Uniform Pixel Architectures: Display panels featuring microLED arrays structured with physical foveal density gradations, matching human retinal density directly at the hardware layer.
• Passive/Low-Power Spatial Tracking: Replaces continuous active NIR illuminators with ambient-light spatial tracking or ultra-low-power event-based sensors, eliminating continuous IR radiation exposure near the eye.

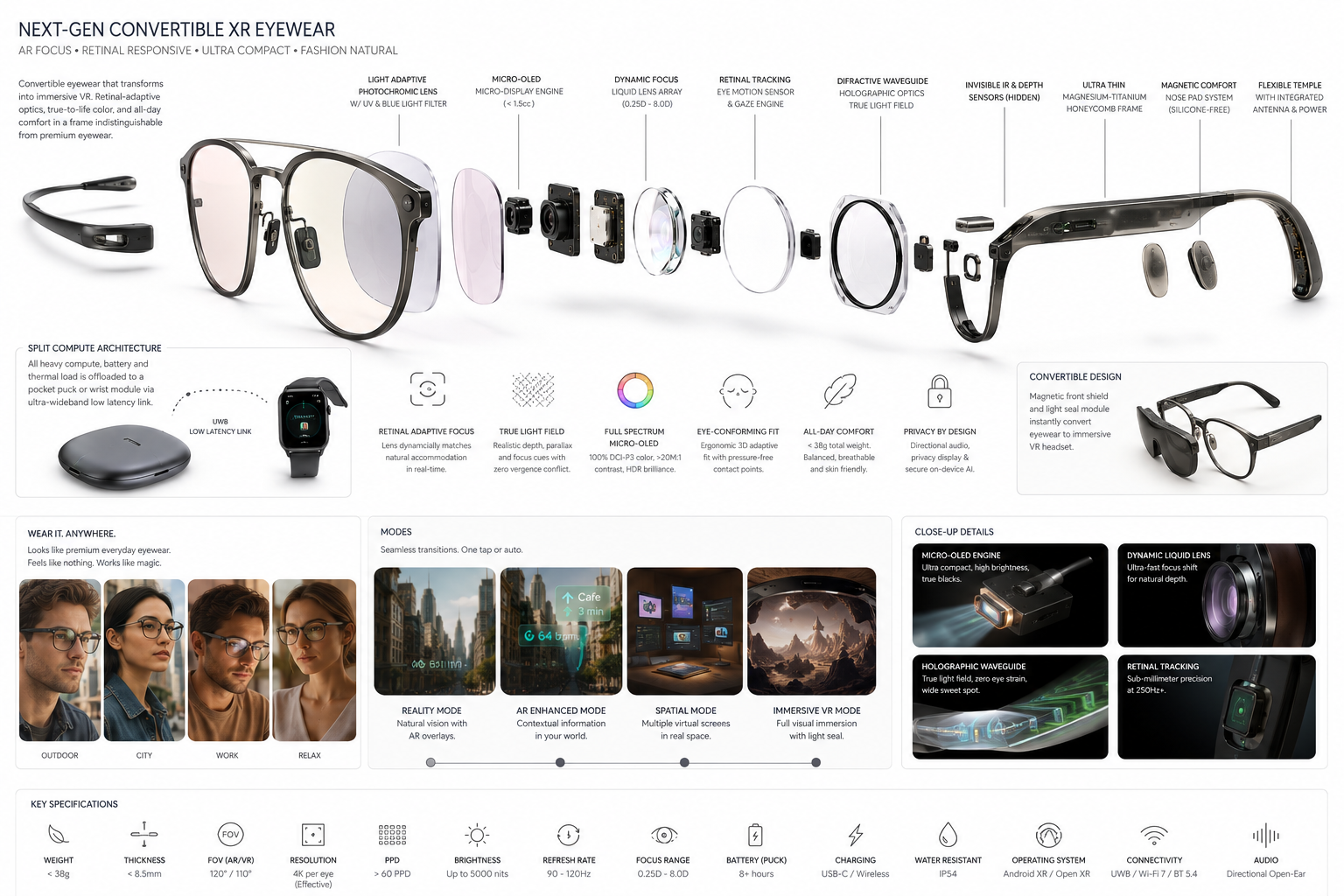

To transition XR glasses from bulky, uncomfortable hardware into everyday aesthetic eyewear, developments focus on material science, thermal routing, and extreme component miniaturization.

1. Eliminating Bulk (Weight & Mass Distribution)

• MicroLED + Flat Meta-Optics: Replacing multi-lens refractive optical engines with sub-millimeter inorganic MicroLED micro-displays and nanoscale flat metasurfaces reduces optical engine weight to under 5 grams.
• Distributed Compute (Split-Architecture): Moving battery cells, cellular modems, and primary system-on-chip (SoC) logic off the face to a pocket puck or smartwatch casing via wireless ultra-wideband (UWB) links leaves only display drivers and sensors on the frame, bringing total eyewear weight under 50 grams.
• Custom Prescription Integration: Direct bonding of prescription corrective lenses into planar waveguides eliminates secondary insert frames that add front-heavy torque.

2. Hygiene & Antimicrobial Material Science

Facial contact zones (nose pads, temple tips, and inner rim boundaries) suffer from sweat accumulation, bacterial culture growth, and skin irritation.

  [ Skin Contact Layer ]  ---> Oleophobic/Hydrophobic Fluoropolymers (Anti-sweat)
  [ Substrate Layer ]     ---> Biocompatible Beta-Titanium / PEEK Polymers
  [ Functional Coating ]  ---> Silver Nanoparticle (AgNP) Matrix (Bactericidal)

• Non-Porous Biocompatible Substrates: Transitioning from porous silicone and soft foams to medical-grade Polyether Ether Ketone (PEEK), Beta-Titanium, and Fluoropolymer Elastomers (FKM) prevents facial oils and dead skin cells from lodging in the material.
• Bactericidal Coatings: Incorporating Silver Nanoparticle (AgNP) matrix doping or photocatalytic Titanium Dioxide ($TiO_2$) surface treatments actively disrupts bacterial cell walls (E. coli, S. aureus) and prevents fungal biofilms from forming in humid micro-environments.
• Superhydrophobic & Oleophobic Surfaces: Surface textures patterned at the nanoscale prevent sweat buildup and tear-film moisture from sticking to nose pads and inner optics.

3. Thermal Management Without Itch/Irritation

Local thermal dissipation directly against facial skin induces localized sweating, redness, and itching.

• Graphite & Heat-Pipe Routing: Heat generated by image processors and eye-tracking sensors is routed away from the nose bridge and forehead, conducting thermal flux down the temple arms toward the back of the ears.
• Passive Radiative Cooling: Frame exterior surfaces use high-emissivity ceramic coatings that radiate infrared heat outward into ambient air rather than trapping heat against skin boundaries.

Aesthetic Comparison: Industrial vs. Ideal Eyewear

while normal glases design make it look bit like eyesight issues

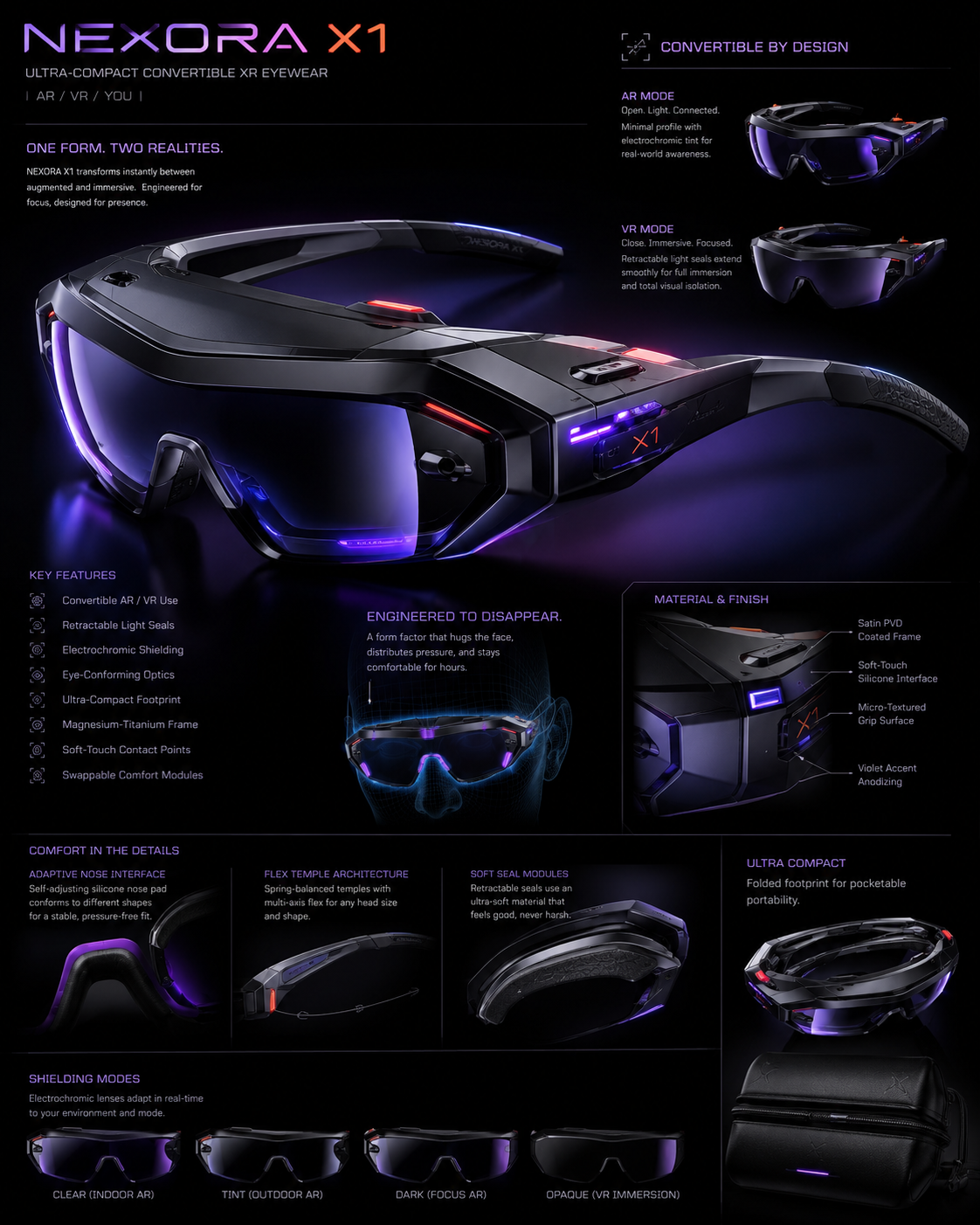

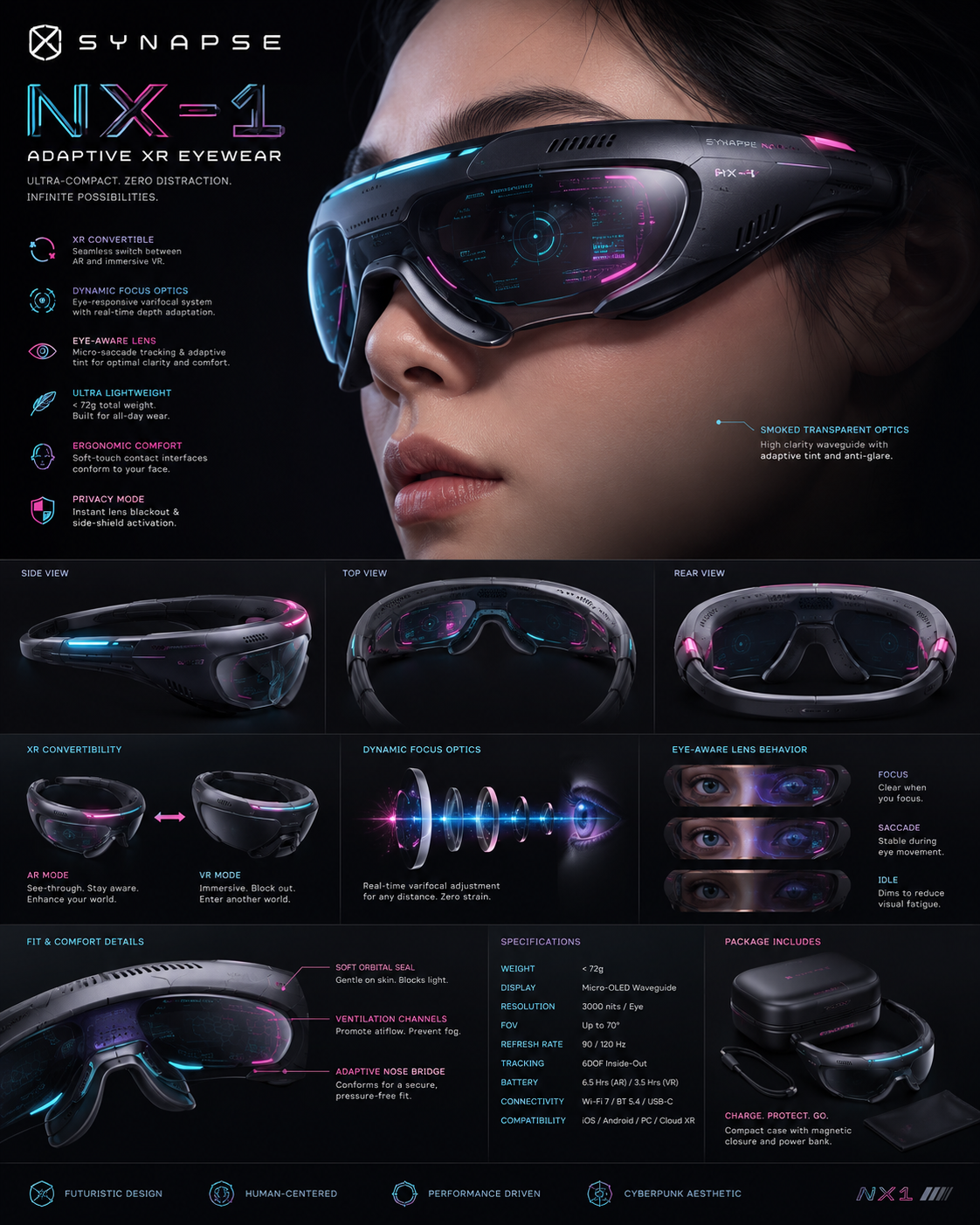

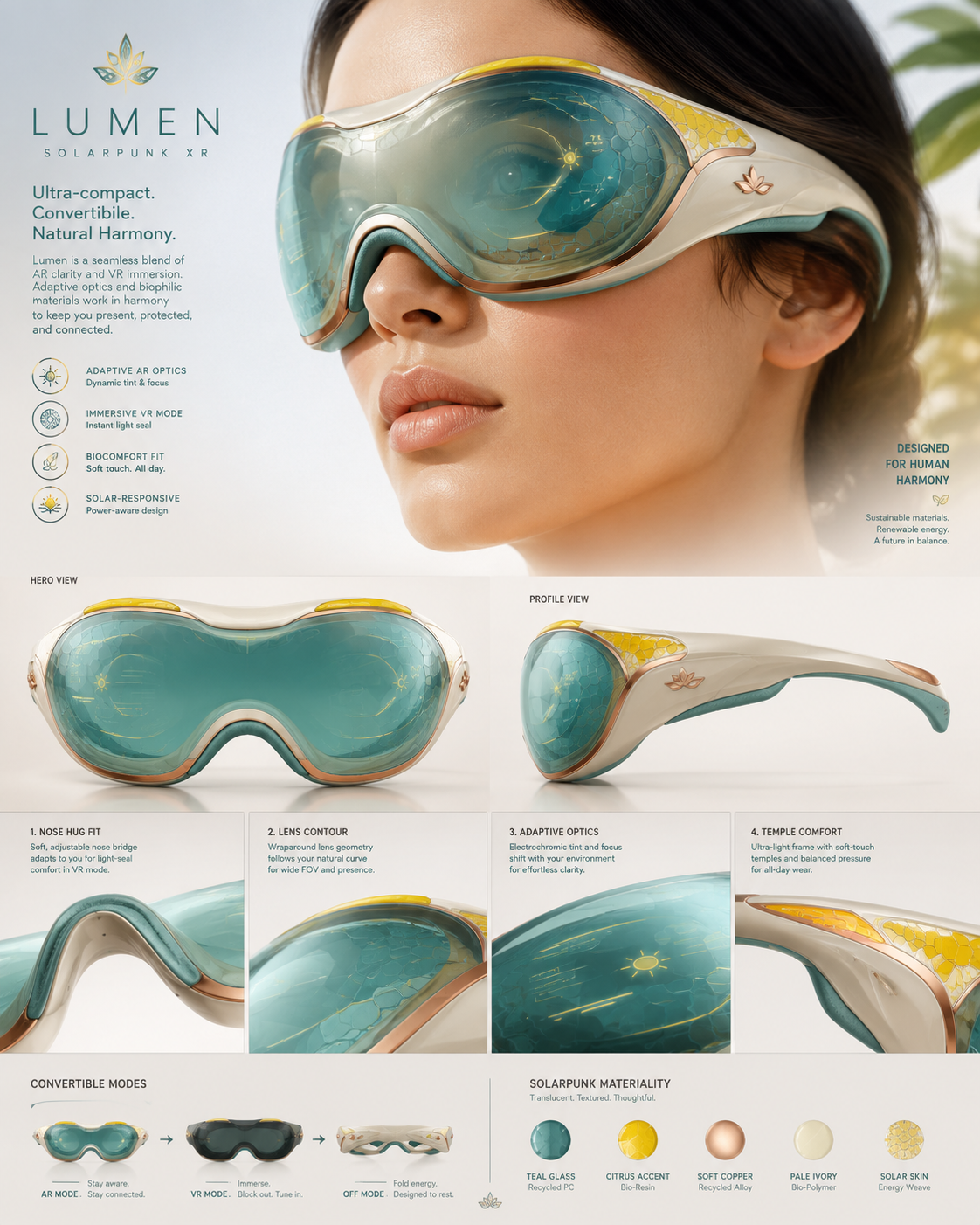

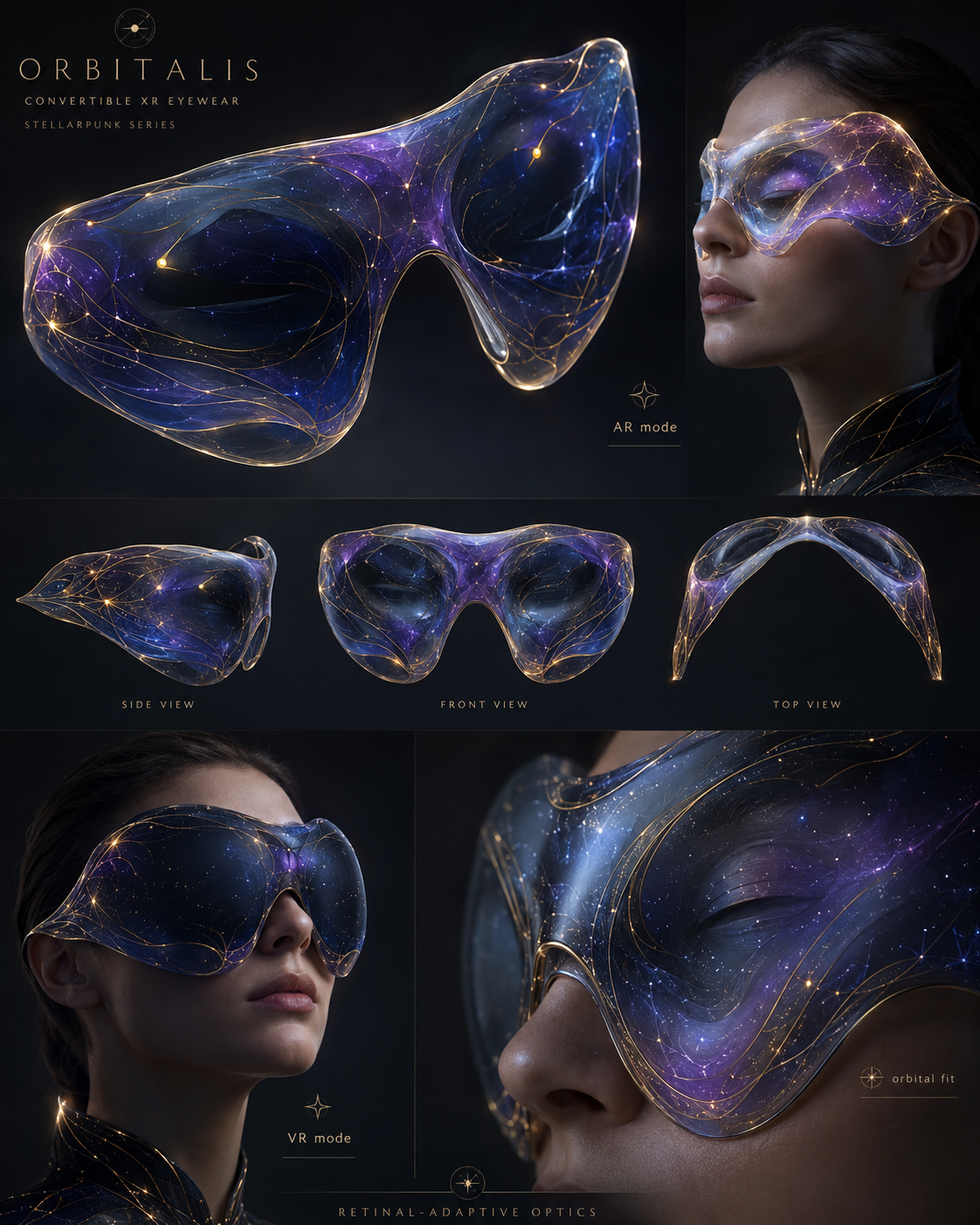

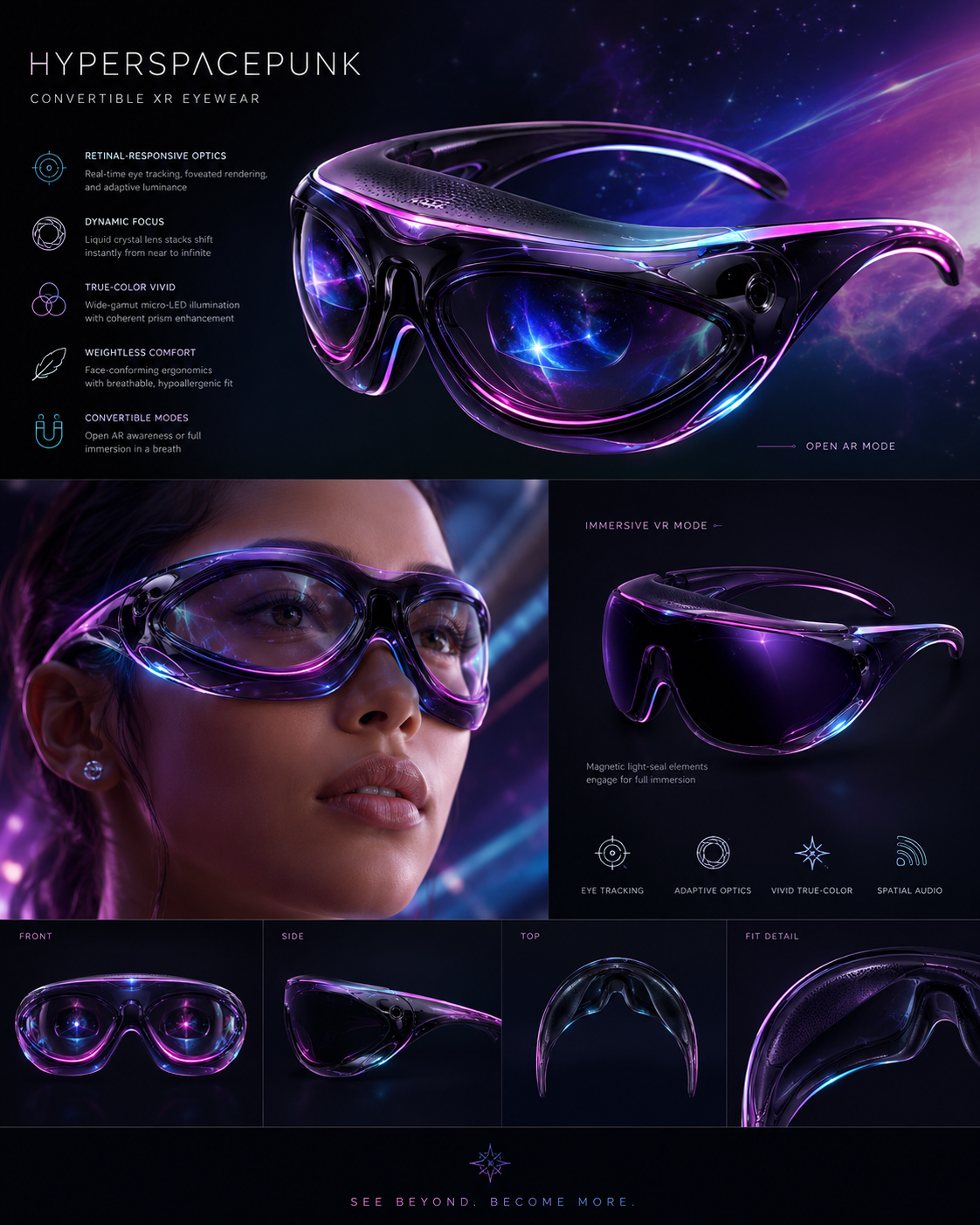

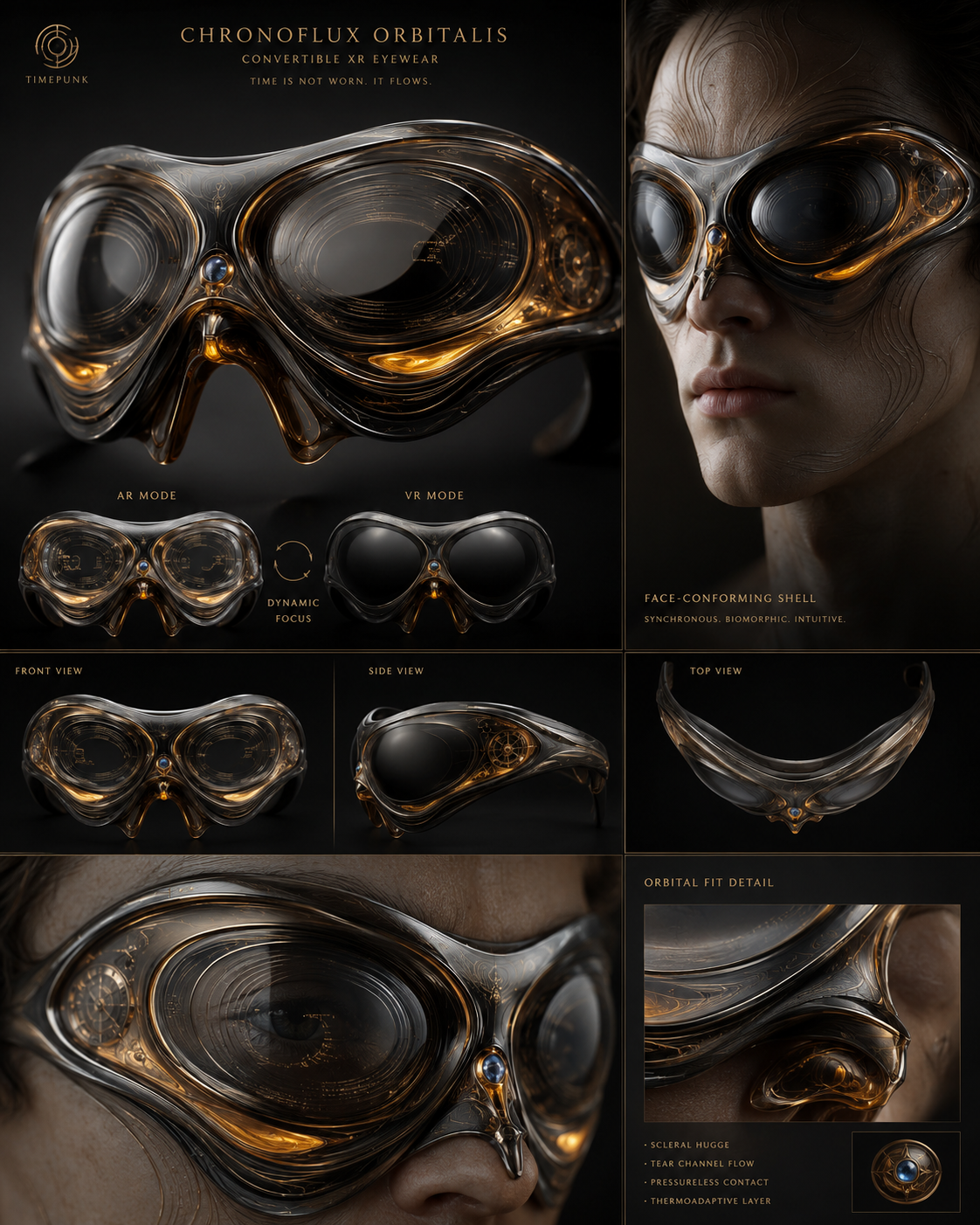

solar/cyber punk e.g. or more morphic examples

while current computing era in complexity is still non-soft-flow- hard detailed non-biomorphic – silicon hard logic based, while all biological forms are smoother continuous spaces at small scales, although objectively, digital forms are also smoother on atomic scales
