Camcorder Video Data Logger : Product idea

· 491 words · 2 min read AI-generated idea ★

Mostly AI-generated: the bulk of this post is AI output that the author prompted, pasted and kept. The author's own words are typically the short prompts and the closing remarks.

e.g Marlin 2B based :https://huggingface.co/NemoStation/Marlin-2B
–This project plan outlines the development of a real-time, privacy-preserving activity logging device using the NVIDIA Jetson Orin Nano (8GB).

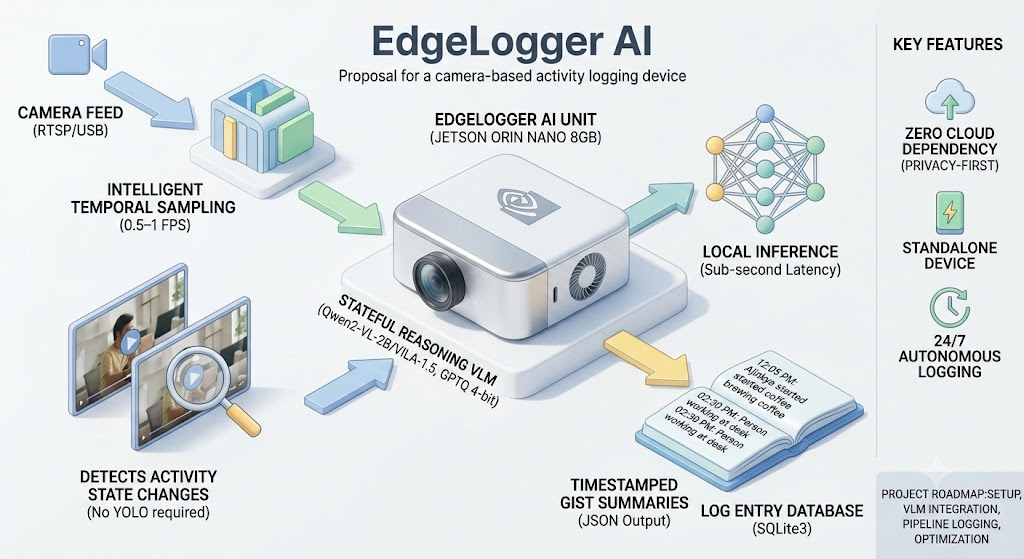

Project Title: EdgeLogger AI

Objective: Create a standalone hardware device that captures camera feeds and generates timestamped “gist” summaries of daily activities locally, with zero cloud dependency.

1. Hardware Infrastructure

  • Core Unit: NVIDIA Jetson Orin Nano (8GB) Super Developer Kit.
  • Storage: 512GB+ M.2 NVMe SSD (Required for hosting large VLM model files and local activity logs).
  • Vision: MIPI-CSI or USB 3.0 wide-angle camera module.
  • Enclosure: Custom-designed chassis with active cooling (fan-cooled heatsink) to prevent thermal throttling during continuous operation.

2. Software Stack

  • OS/Environment: JetPack 6.x (Ubuntu 22.04 base).
  • Inference Engine: nanoLLM library and Jetson Platform Services (VLM service).
  • Quantization: GPTQ (4-bit) to ensure the 2B-parameter model fits within the 8GB shared memory limit while maintaining speed.
  • Database: SQLite3 for persistent, local storage of timestamped JSON logs.

3. Development Roadmap

PhaseDurationFocus
Phase 1: SetupWeeks 1-2Flash JetPack 6.1, configure Docker containers, and establish remote SSH access.
Phase 2: VLM IntegrationWeeks 3-5Set up nanoLLM with Qwen2-VL-2B or VILA-1.5. Benchmark inference latency and tune quantization settings.
Phase 3: Pipeline LogicWeeks 6-8Develop the event-triggered logic. Script the “Alert Mode” to sample frames at 0.5–1 fps and generate gist summaries.
Phase 4: Data LoggingWeeks 9-10Build the SQLite integration. Create a simple local web UI (using the Jetson AI Lab web-vlm template) for log viewing.
Phase 5: OptimizationWeeks 11-12Perform thermal stress testing, optimize TensorRT engine files, and finalize the autonomous “boot-and-log” service.

4. Technical Implementation Workflow

  1. Frame Sampling: Capture frames from the camera feed using hardware-accelerated GStreamer (nvarguscamerasrc).
  2. Trigger Logic: Utilize the VLM in a “Stateful Reasoning” loop. Instead of streaming, capture a frame every 2 seconds and query: “Summarize the activity in this frame compared to the last. Output format: JSON { ‘timestamp’: …, ‘summary’: … }”.
  3. Local Storage: The Python service intercepts the JSON output, parses it, and commits it to the SQLite database.
  4. Privacy Layer: Ensure the device runs in an isolated network environment (or air-gapped) to guarantee that no video frames ever leave the physical device.

5. Commercialization Strategy

  • Prototype to Product: Transition from the Developer Kit to the Jetson Orin Nano SoM (System on Module) to reduce device footprint and BOM (Bill of Materials) cost.
  • Custom Carrier Board: Design a carrier board with a dedicated M.2 slot for storage and integrated power management for battery-operated portability.
  • Privacy-First Marketing: Emphasize “Zero-Cloud Logging” as the primary value proposition, positioning the device as a private “life-logging” assistant.

Success Metrics

  • Latency: Inference response time under 1 second per summary.
  • Reliability: 24/7 uptime without memory leaks or thermal shutdowns.
  • Accuracy: Consistent extraction of activity timestamps (e.g., “Started working at 09:00 AM,” “Took a break at 12:30 PM”).

Next Step: Obtain the Jetson Orin Nano 8GB Super Developer Kit and verify your ability to stream local video through the Jetson AI Lab Live VLM WebUI container. This confirms the baseline environment is functional.

—
